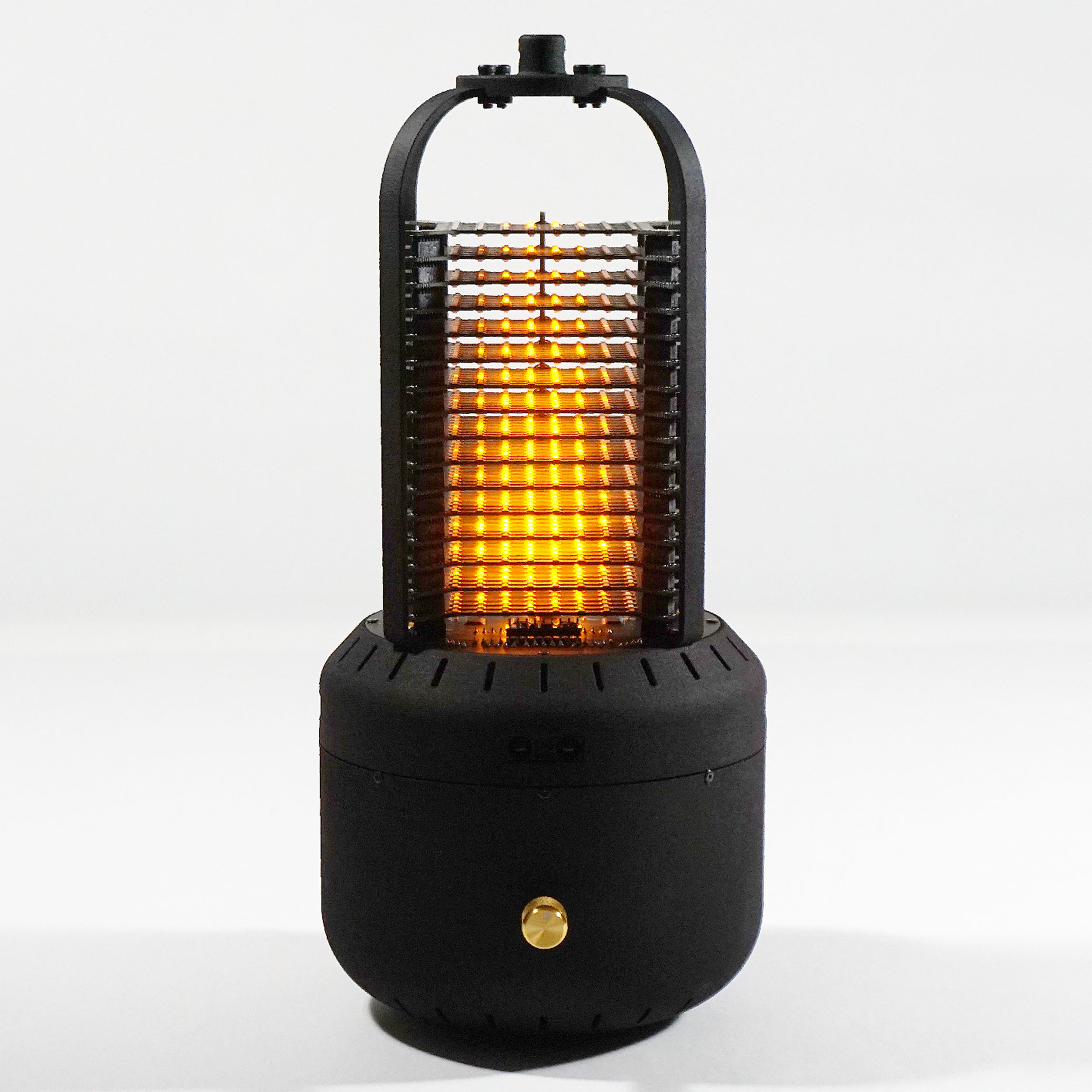

This LED cube was made by referencing the form of a lighting device that directly handles fire among the types of traditional lighting. Instead of simply using the cube as a light device, it attempted to realize a completely different dimension of lighting through changes in the light source itself.

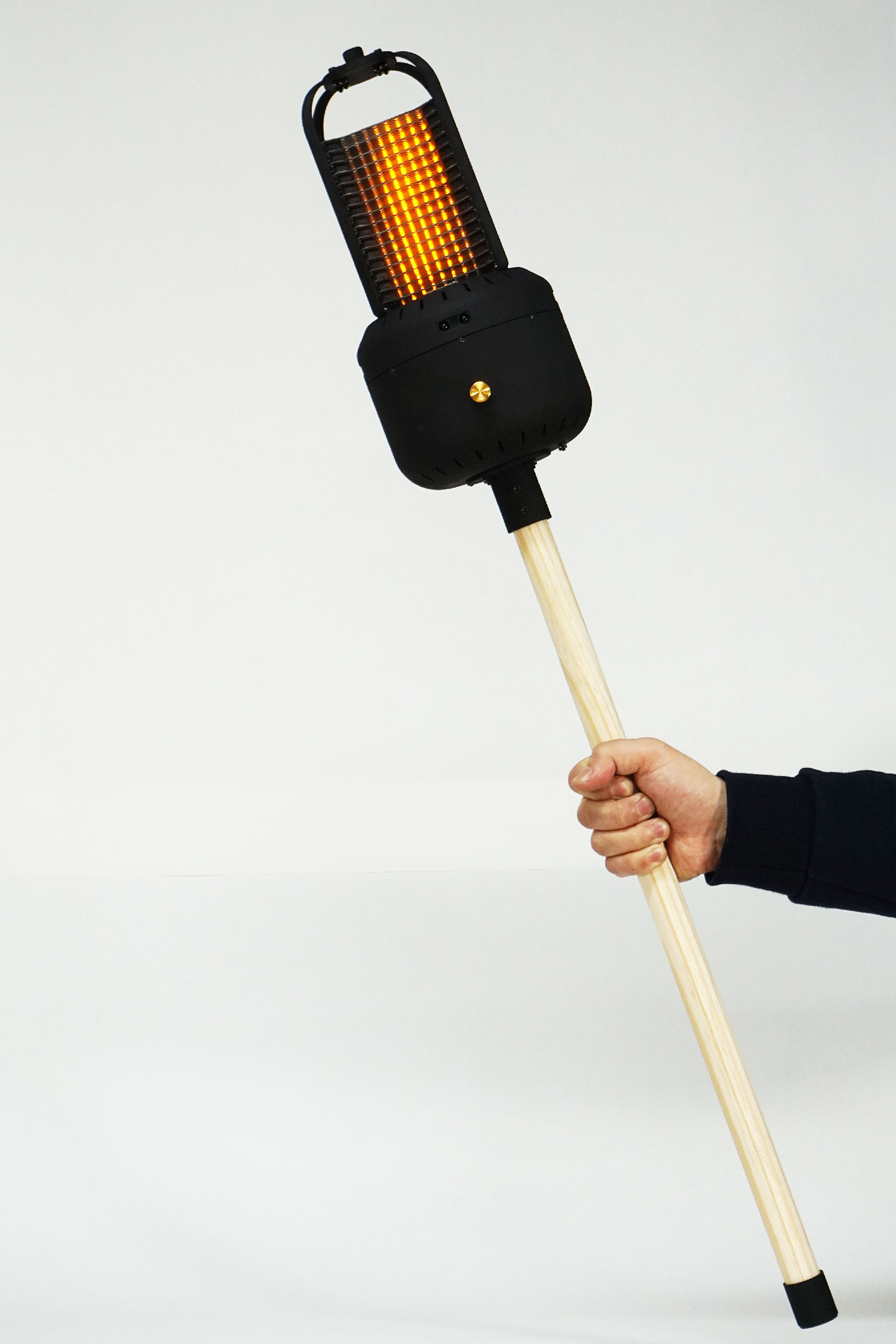

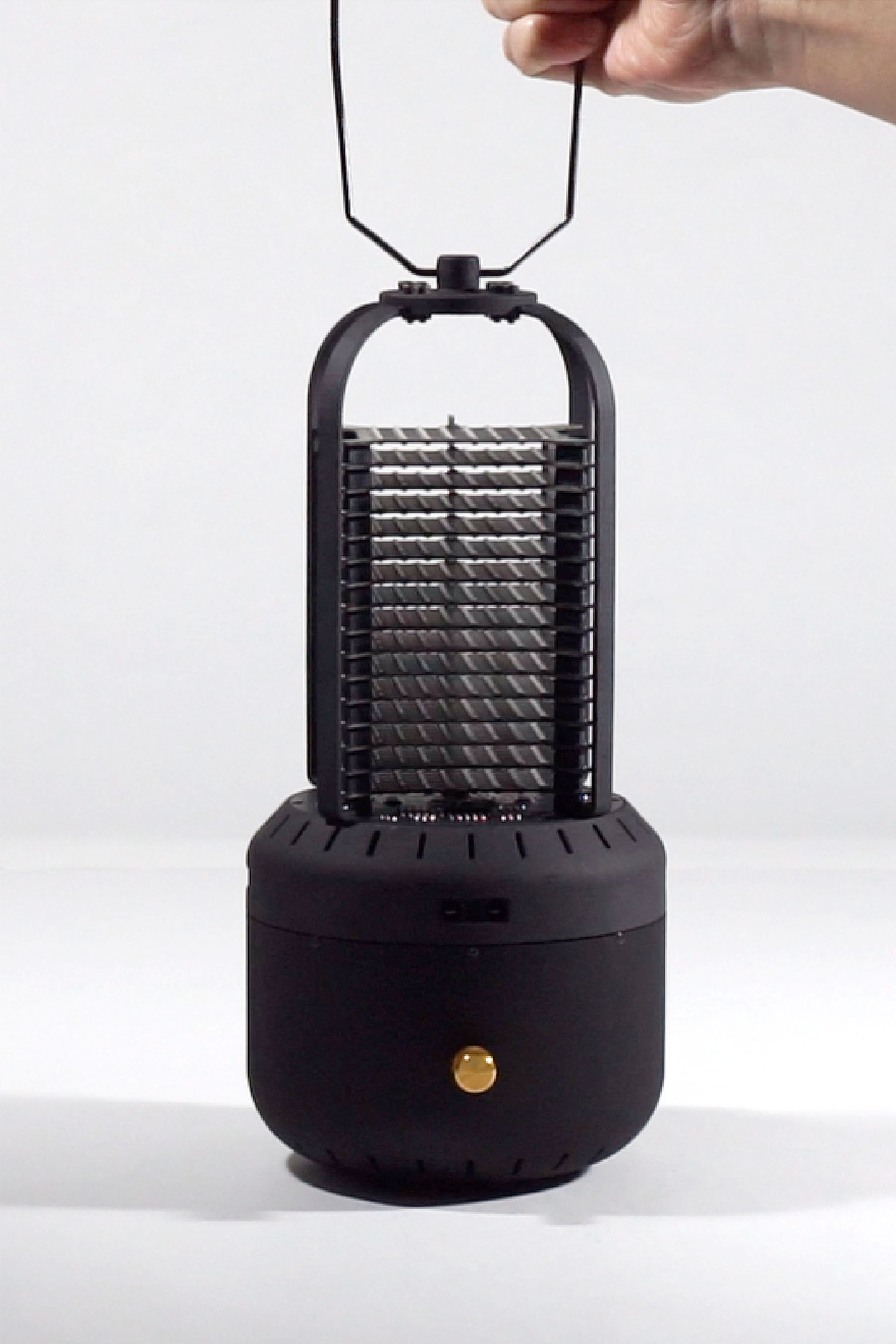

Lanterns and torches are considered to function as a fire in people's notions because of the historical context used in real life. By using the external form of these as a medium, it was carried out to capture the flame generated by the LED CUBE. Also, it should be possible to reproduce the movement of the fire and its irregular properties so that a similar image of the actual flame can be triggered when a user looks at the device.

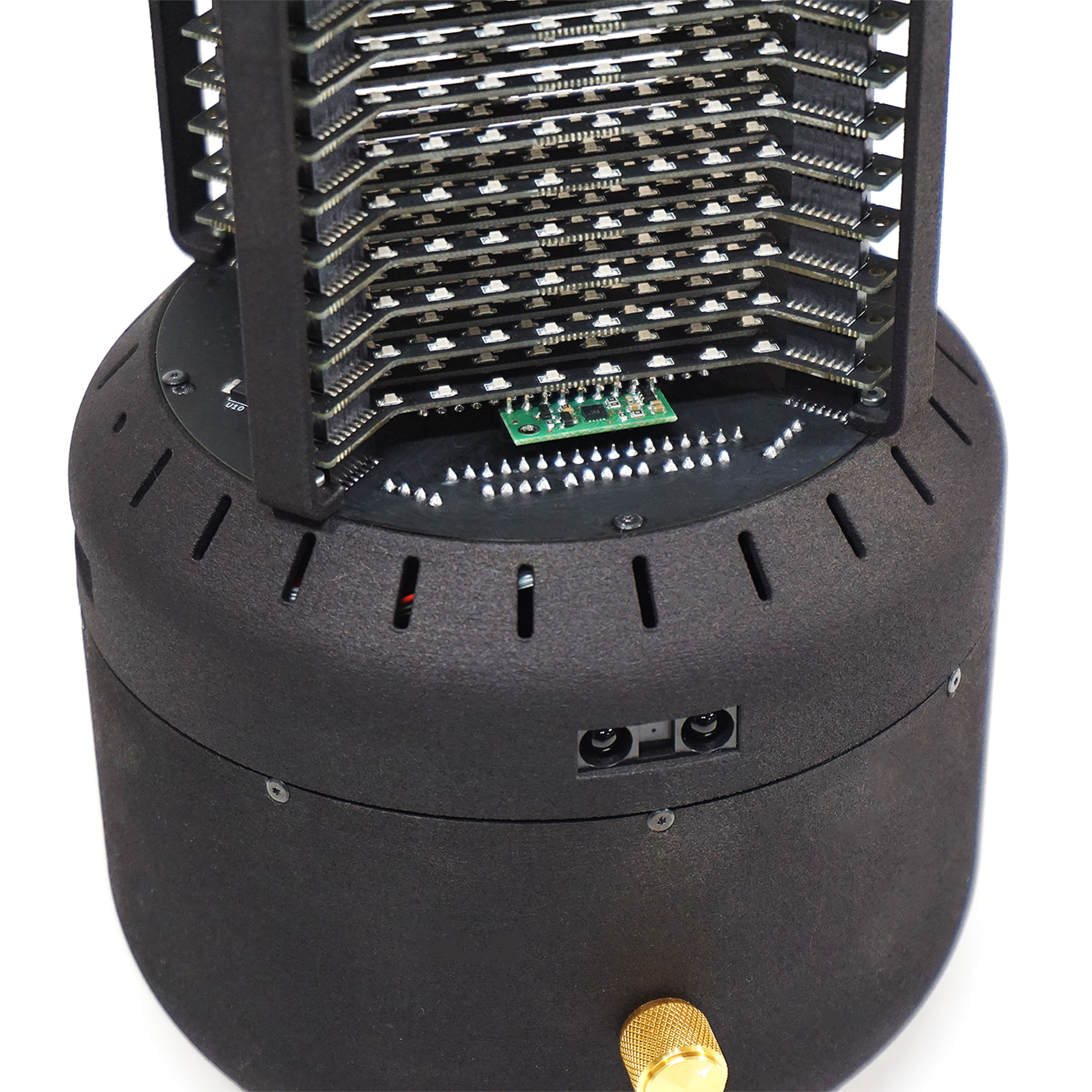

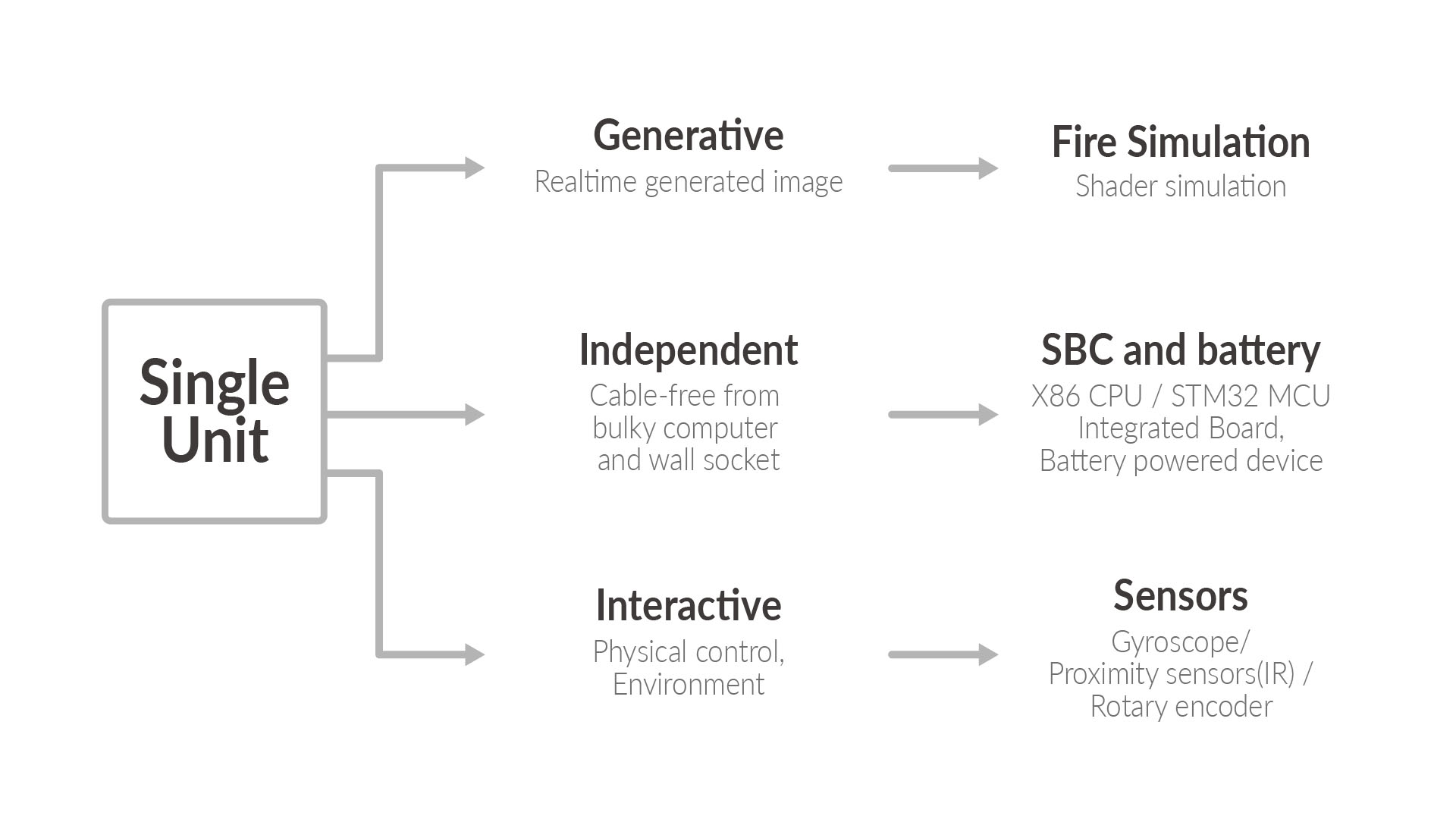

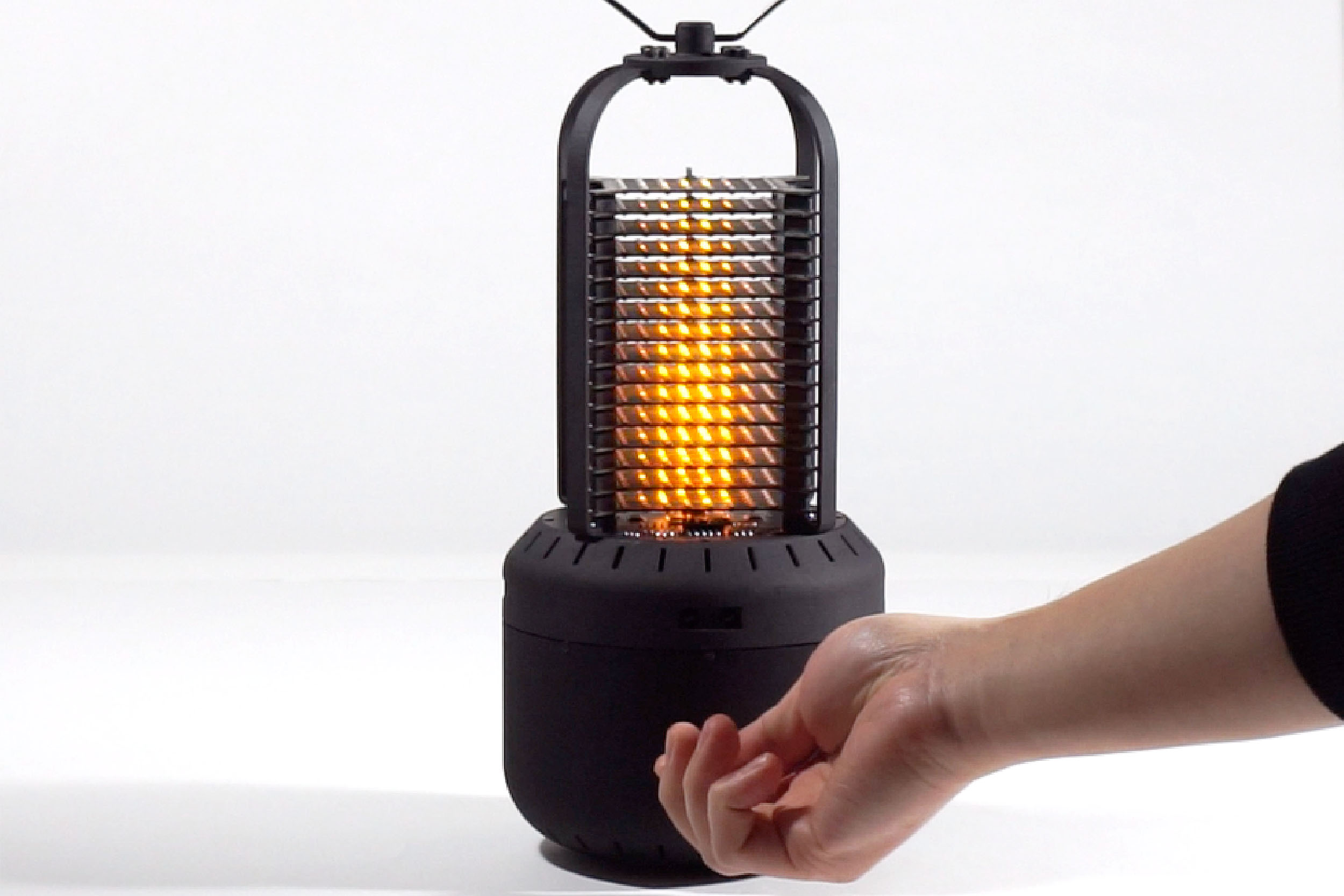

In order to convey the feeling of a real flame to the user, it is not enough to simply generate the fire. Therefore, it is essential to combine sensors that measure external state changes and reflect the user's behavior in the shape of a flame.

Specification

Size:
14(width) X 14(depth) X 30(height) CM

Materials:

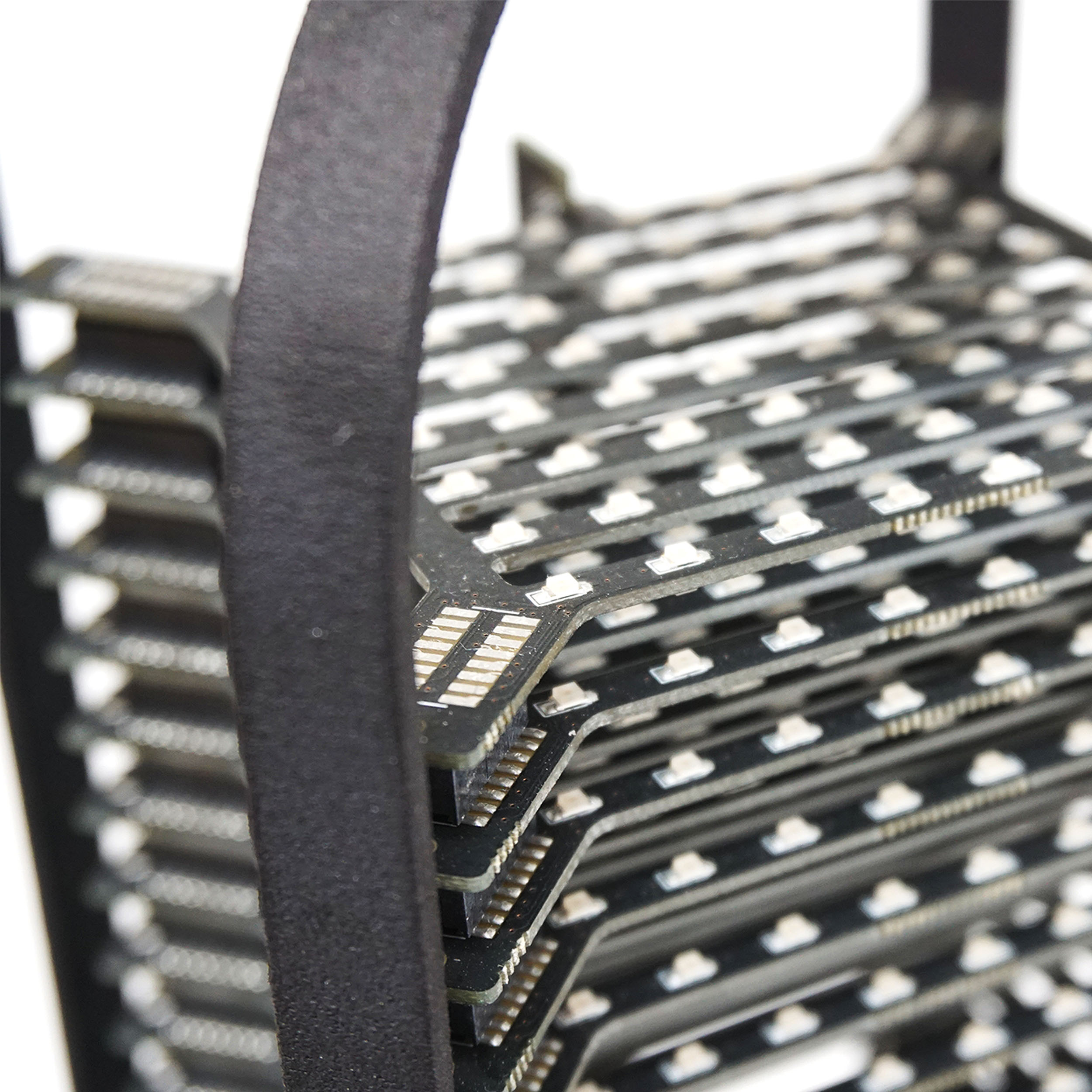

SMD type LED, 3d printed resin, Latte panda SBC, STM32F103 MCU, Custom designed electronics

Software:
Openframewors, OPENGL, C++ Language
